PDMShell add-in

The PDMShell add-in lets SOLIDWORKS PDM administrators run .pdmshell scripts directly from PDM menus and PDM event trigger points. It is designed for the same class of automation normally handled with Dispatch: user commands, event-driven rules, file and folder automation, condition checks, and administrator-controlled deployment.

Instead of building automation from a fixed list of Dispatch actions, the add-in runs PDMShell scripts. This gives administrators access to the PDMShell command engine, the visual script editor, placeholders, PDM variables, and headless execution through pdmcli.exe.

Tip

Need help building scripts or automation workflows? Blue Byte Systems offers Enterprise Support Services for customers who want help designing, developing, or troubleshooting PDMShell automation.

Note

The PDMShell add-in is included with the premium version. You can download it from your Blue Byte Systems Inc account or deploy it with PDMDeploy.

What you can automate

• Add right-click commands such as PDMShell\Rename Files.

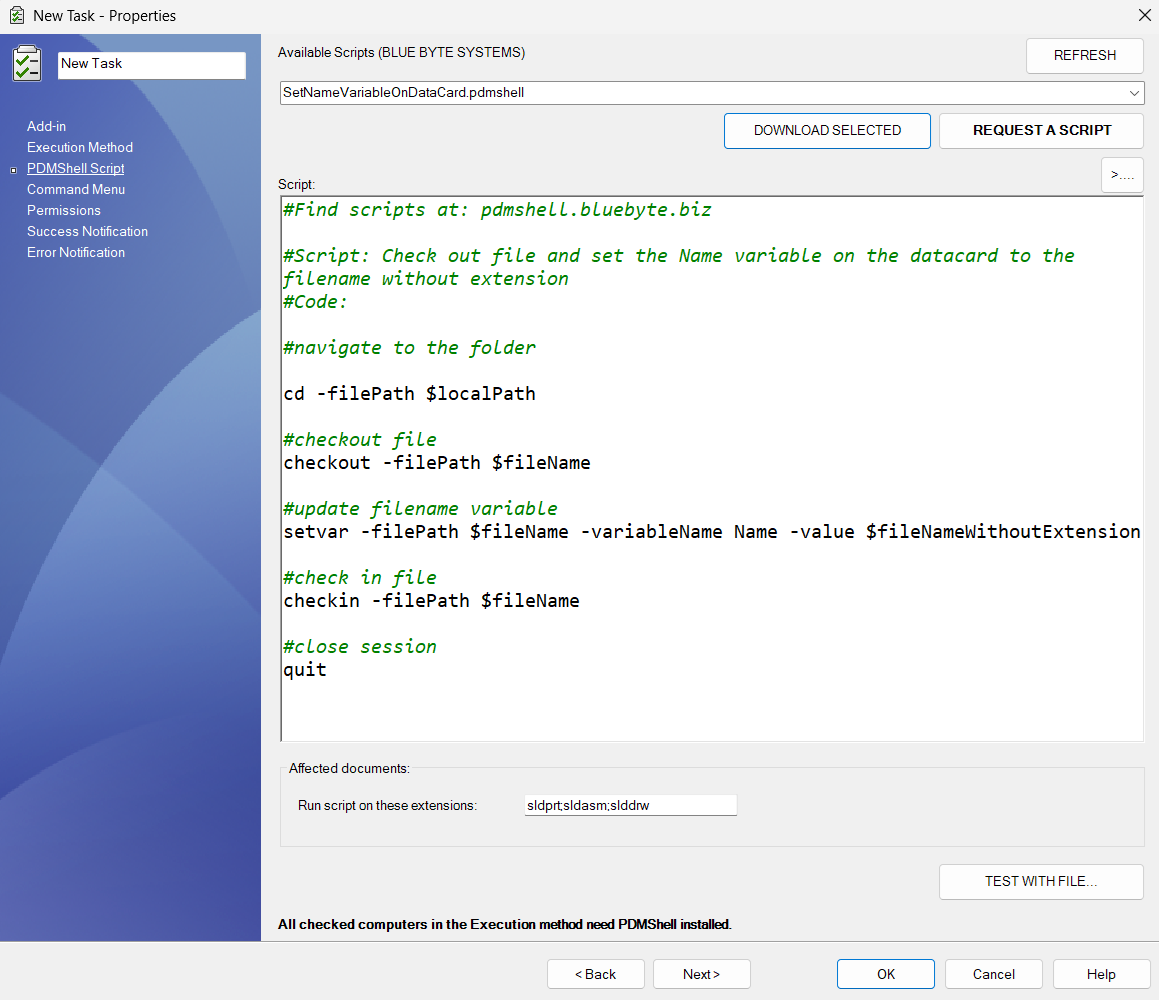

• Create SOLIDWORKS PDM Tasks that run PDMShell scripts, similar to the built-in Convert task.
• Run scripts before or after checkout, check-in, undo checkout, state change, add, delete, move, copy, rename, get, label, card button, and folder commands.
• Restrict scripts to selected PDM users or groups.
• Validate conditions before a script runs.
• Pass selected files and folders to PDMShell with runscript -items.
• Test condition values with a message before enabling production automation.

Documentation

Article	Use it for
Installation and access	Loading the add-in and opening the Script Editor
Manage add-in licenses	Managing PDMShell add-in license keys from the PDM Administration Tool
License pool and machine licenses	Choosing between pooled vault licenses and a local machine license

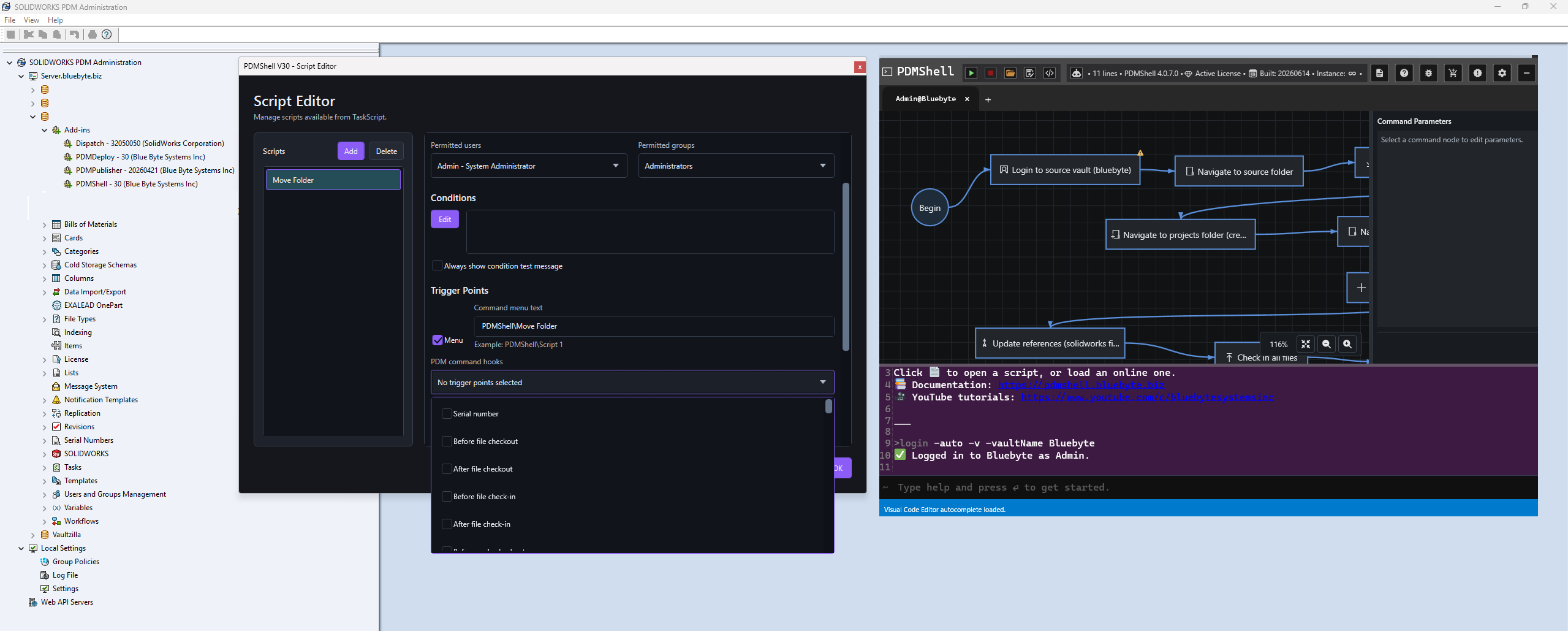

Script Editor	Creating, cloning, saving, and editing script entries
Permissions	Limiting scripts to users and groups
Conditions	Building wait-style condition expressions
Command menu scripts	Adding right-click PDM menu commands
PDM Tasks	Creating SOLIDWORKS PDM Tasks that run PDMShell scripts
Event trigger points	Running scripts from PDM command hooks
Placeholders and command context	Using file, folder, command, and variable placeholders
Runtime execution	Understanding pdmcli.exe, headless mode, and -items
Testing and troubleshooting	Validating scripts and diagnosing common issues

Dispatch comparison

Dispatch action scripts typically combine triggers, conditions, variables, and actions. The PDMShell add-in uses a similar administrator workflow, but the action body is a PDMShell script.

Dispatch idea	PDMShell add-in equivalent
Action script	A configured PDMShell script
Administrative action	Script configured in the Script Editor
Menu command activation	Menu trigger with command menu text
PDM task	PDMShell task add-in running a .pdmshell script
PDM event activation	Trigger points such as checkout, check-in, state change, add, delete, move, copy, rename, and folder events
Conditions	PDMShell wait-style condition expression
Variables	PDMShell placeholders and PDM variable placeholders
Shell execute action	pdmcli.exe running the configured .pdmshell script
Debugging a script	Condition test message, visual script editor, and standalone pdmcli.exe -edit

Recommended rollout

1. Build and test the .pdmshell script outside the add-in.
2. Add the script in the Script Editor.
3. Enable the condition test message while validating conditions.
4. Configure permissions for a small administrator group first.
5. Enable a command menu or trigger point.
6. Test against a small set of files.
7. Expand permissions after the automation behaves as expected.
